Quick Details

  • Condition: New
  • CNC or Not: CNC
  • Place of Origin: Shandong, China (Mainland)
  • Brand Name: SuDiao
  • Model Number: SD1530C
  • Voltage: 380V
  • Power(W): 9kw HSD spindle
  • Dimension(L*W*H): 1500*3000*200mm
  • Weight: 1800kg
  • Certification: CE
  • Warranty: 1 year
  • After-sales Service Provided: Engineers available to service machinery overseas
  • machine model: SD1325C linear automatic tools changer
  • motor: Japanese YASKAWA motor

Packaging & Delivery

Packaging Details standard woodcase
Delivery Time 10 working days after get the deposit

Specifications

ATC CNC router
1.factory price
2.CE
3.Japanese YSAKAWA
4.best after sales service

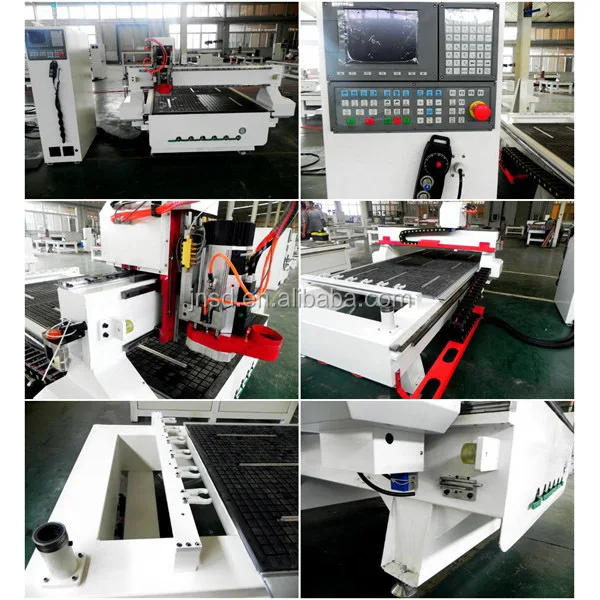

SD1530C Germany Technology wood CNC router furniture ATC CNC router

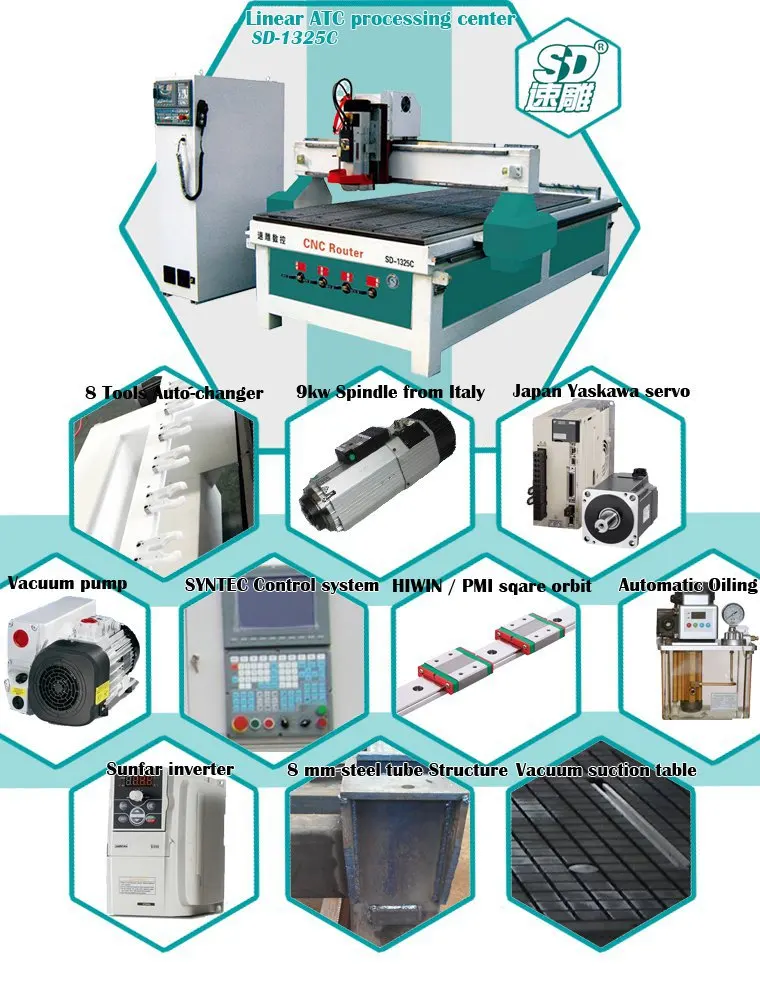

ATC introduction

1)Helical Rack Gear Transmission

2)Taiwan Hiwin Square Guide Rail

3)Taiwan Syntec Control System

4)Italy HSD9.0KW ATC Spindle

5)Linear type ATC (6 Tools Changer, 3 Holders)

6)Taiwan Delta Inverter

7)Japan Yaskawa 750W Servo Driver & Motor

8)3KW Dust Collecting System

9)Vacuum Working Table

10)China Top Brand Tongyou 7.5KW Vortex Pump

11)Upright Electric Cabinet

12)the lathe bed is heat treatment

13)high precision
14)CE
15)Japanese YSAKAWA
16)best after sales service

ATC technical

Model

              ATC SD-1530C

Working Area

1500*3000*200mm

XYZ Positional Accuracy

±0.03/300mm

XYZ Repeatiblity Accuracy

±0.04mm

Lathe Structure

Heavy Duty Steel Pipe Welding Lathe Bed

XY Structure

Taiwan Hiwin Square Guide Rail & Helical Gear Rack

Z Structure

Taiwan Hiwin Rquare Guide Rail & Taiwan TBI Ball Screw

Table Surface

Vacuum Table with Tongyou 7.5KW Vortex Vacuum Pump

Dust collecting system

3KW Dust Collector

Gantry Structure

Whole Cast Iron Gantry

Max. Speed

32000mm/min

Max. Working Speed

20000mm/min

Spindle Power Motor

Italy HSD9.0KW ATC Spindle

Spindle Speed

0-24000RPM

ATC Type

Linear type ATC (6 Tools Changer, 3 Holders)

Inverter

Imported Taiwan Delta Inverter

Drive Mode

Imported Japan Yaskawa 750W Servo Driver

Motor

Imported Japan Yaskawa 750W Servo Motor

Working Voltage

380V, 50/60Hz

Command

G Code, *uoo, *mmg, *plt

Operating System

Taiwan Syntec System

Software

Type3, Ucancam, Artcam, Castmate, CAD and so on

Net Weight

1900KGS

Gross Weight

2000KGS

cnc application

Application industry and material

*wood:can process cabinet,wood door,solid wood,plate-type,table,chairs,etc.

*Decoration:screen,wave plate,huge-scale hanging,advertisement plates,marking market.

*Arts: can engrave on man-made stone,wood,bamboo,marble,acrylic,double-colored board beautiful drawings and letters.

after sales service

1.the whole machine we can warranty for one year;

2.No matter you have any questions about machine,just let me know;

3.If  necessary ,Our engineer can also come to your country to teach you how to operate the machine;
