Quick Details

  • Condition: New
  • Place of Origin: Shandong, China (Mainland)
  • Brand Name: SUDIAO
  • Model Number: SD 1325
  • Voltage: 380V
  • Rated Power: Hyper 45A plasma power
  • Dimension(L*W*H): 3.2x2.2x1.7 m
  • Weight: 1800KGS
  • Certification: CE ISO
  • Warranty: ONE YEAR
  • After-sales Service Provided: Engineers available to service machinery overseas
  • machine structure: whole cast steel structure
  • working area: 1300x2500 mm
  • rail guide: HIWIN square orbit
  • plasma power: 45A Hypertherm power(65A, 105A optional)
  • controller: Beijing START
  • motor type: stepper motor
  • Guarantee: 12 months
  • keywords: professional CNC plasma cutting machine

Packaging & Delivery

Packaging Details film and wooden case:
professional CNC plasma cutting machine manufactured by SUDIAO CE ISO Hyper 45A plasma power
Delivery Time 15 days

Specifications

cnc plasma cutting machine 1325
1:working area 1.3x2.5 m
2:Hyper 45A plasma power
3:Beijing START controller
4.CE ISO







Company Information





Product Description

cnc plasma cutting machine 1325, 1530 is optional

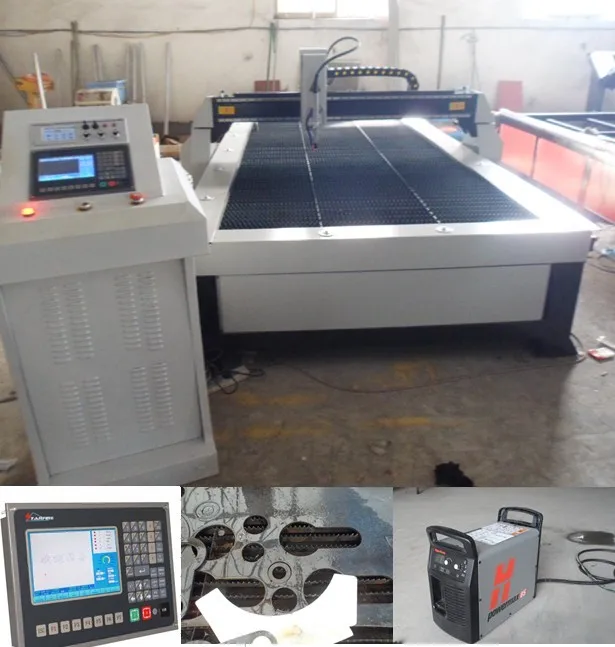

Plasma cutting machine

Metal panel and bottom plate for advertisement cubic lighting character, groove character are cut. The cutting precision has achieved excellent target. Lower limit of plasma power supply of the laser cutting machine can be achieved if configuration of American Hai Bao is realized.

The fact that other advertisement equipments (forming machine, pick shearer, carving machine)are matched together to form assembly line of the manufacture process of advertisement character has completely replaced traditional manual manufacture form so that the working efficiency has increased for over times of several decades.

Cutting mouth is smaller and tidy without any dropouts has avoid trimming and manufacturing for the second time.

Sheet metals such as metal plate, aluminum sheet, galvanized sheet, white steel plate, etc. are suited to be used.

The cutting speed is higher, the precision is higher and the cost is lower.

Numerical control system configuration is higher, automatic arc striking is realized and is stable in its performance; the success ratio of arc striking can be over 99%.





NOTE :



plasma power    cutting thickness



45A/                       ≤10mm

65A/                       ≤12mm

85A/                      ≤16mm

100A/                    ≤19mm





 Technical parameters:

Model

SD 1325, OPTION 1530

Working area

1300X2500 mm

Table size

1800x3200 mm

Max working speed

0-8000mm/min

Working precision

0.005 mm

Repositioning accuracy

0.05 mm

Table

Tool section , industrial solid working table

Command

G code

Surroundings for software

Windows 98/2000/XP/ 7

Power

AC380V / 50Hz , 60 Hz

Current

45 A Hypertherm plasma power           (65A, 105A optional)

Work mode

Stepper motor , Y axis adopt double motor to drive

Structure

Steel structure , square orbit

Driver system

Rack&pinion for X Y axis

Software

Ucancam V9

Controller

DSP START















cnc plasma cutting machine Features:

Cast steel lathe bed ,more solid and stable .(Option:industry lathe bed)

Reasonable material inclined leakage design.All finished working pieces and framents slide into bed under,easy to clear machine and get working pieces.

High accuracy rack gear transmission for X,Y axis adopt double motor to driver.

Lower noises ,stable and accurate coordinate movement.

Beijing STSRT control system with auto material saving function,long time use,English operation interface.

American Hypertherm plasma power,higher working strength ,long time use .(Option:45A,65A,105A)





Our services

After-sale service

 1)  Free training ;

2)  12 months for machine,long life spare parts ;

3)  24 hours technical support ;

4)  Door-to-door service supported ;

5)  English software, user manual and operation CD ( woodworking cnc machines for sale );

https://www.youtube.com/results?search_query=sudiao&page=1



Machine video

https://www.youtube.com/results?search_query=sudiao&page=1





Packaging & Shipping



1. Outside package: Sandard export wooden cases

2. Inner package: Stretch film



Delivery time: after sure down payment , within 10 days arrange shipping

if adopt CIF, we will find better shipping company for clients by sea .





Our Services



1.One year quality guaranty, the machine with main parts(excluding  the consumables)  shall  be  changed free of charge when problems happened during the warranty period.

2.Lifetime maintenance free of charge.

3.Free training course at our plant.

4.We will provide the consumable parts at an agency price when you need replacement.

5.12 hours on line service each day, free technical support.

6.Machine has been adjusted before delivery, operation disk was included.







FAQ



1: how about the Max working area you need ?



 2: what material you work on ?



3: what work you do , engraving , cutting ?



4 : what type after sale service you need we provide ?
